    0.4Mpa 75HP Jet Mud Mixing Pump For Directional Drilling

    75HP Explosion Proof Jet Mud Mixing Pump With Good Sealing Performance And Large Capacity

    Introduction of Jet mud mixing pump

    Aipu is a famous solids control manufacturer in China, which has been selected and praised by many old customers abroad


    APSLH series jet mud mixing pump are widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. Which welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from.



    Jet mud mixing pump is used to concoct the drilling fluids and to change its density and viscosity. Which is the equipment to match with the drilling solids control equipment, generally used for mixind and adjusting the proportion of drilling fluid.With more excellent operation if being matched with shear pimp, and also can be designed to single or double jet mud mixing pump as the clients requirements.


    Technical parameters of APSLH series Jet mud mixing pump


    ModelCapacity(m3/h)Pressure (Mpa)Motor (Kw)Inlet (Inch)Outlet (Inch)Weight (Kg)Dimension L×W×H(mm)
    APSLH150-50272(1200GPM)0.25-0.455(75HP)8616752200×1840×1100
    APSLH150-40150(660GPM)37(50HP)6614602200×1840×1135
    APSLH150-3590(400GPM)22(30HP)5411671850×1540×1000

    How to select mud mixing pump


    First we shoud confirm treating capacity we need. And for oil and gas drilling kindly suggest 150m³/h flow rate. Then confirm pump,neceddary pipelines and also can depends on suppler suggestion


    Jet mud mixing pump hydraulic consumption should be as little as possible, otherwise the flow rate may decrease by too much
    Distance between Venturi hopper and nozzle should be proper. The optimal distance should be 32~90mm
    Output pressure should be designed properly. If the discharge port pressure is too high the flow rate of mixing pump will be lower than expected
    The higher pressure at inlet port the higher flow rate of mixing hopper
    The higher hopper mounted the lower mixing capacity

    Main characterstics of APSLH Series Jet Mud Mixer


    The unit includes one sand pump, one jet mixing hopper

    The effect is more prominent matching with Shear Pump.

    It is safe and stable and can be moved conveniently.
    It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
    It can be made Twin Jet Mud Mixers according to the user requirements.


    Jet mud mixing pump can change the density, viscosity and water loss effectively, and also enhance material dispersion effect, improve the mixed liquid pressure head.


    Sand pump and jet mud mixing pump can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, with good sealing performance.

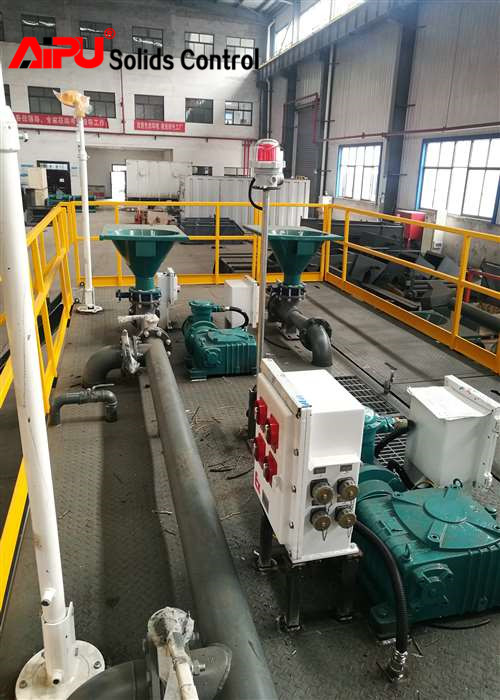

    Single jet mud mixing pump is made up of one sand pump, one jet mud mixing pump that are installed in a base with pipe valves. Duplex jet mud mixing pump is composed of two sand pumps and two jet mixing hoppers.


    If you have any demand of mud mixing hopper unit ? Please contact AIPU Solids freely. Trust you will get the true cost effective solution at the best rate.
