APMGS Series Mud Gas Separator Is Professional Equipment To Treat The Gas Invade Mud At Oil And Gas Well Drilling

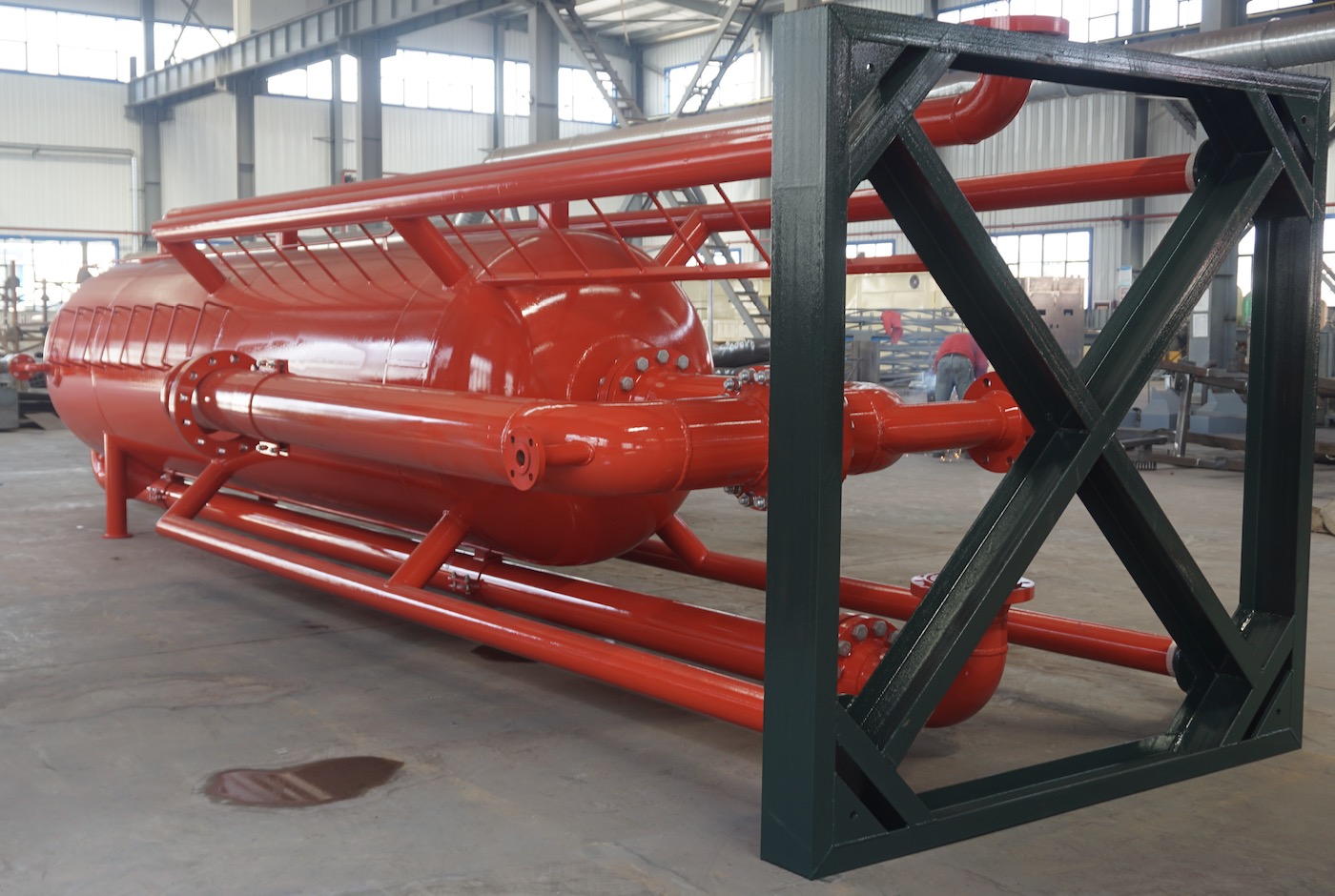

Mud Gas Separator is a piece of special equipment for degassing gas-invaded mud in the first grade. It is mainly used to remove big bubbles above φ3mm in diameter and these bubbles refer to expanded gases in the fluids that fill in some parts of well annulus. Well kick even spilling out to the rotary table will easily occur if they are not removed.

Mud Gas Separator Application:

Mud Gas Separator serves as an ideal device if well blowout or kick is encountered or if operators apply under-balanced mud column in drilling processes. APMGS series Mud gas separator is primarily used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Field data shows it is a fairly reliable and vital safety equipment.

Mud Gas Separator Features & Benefits:

1. Separates and discharges the enormous free gas from drilling fluids, including poisonous gases like H2S.
2. Separated gas is carried by discharge lines to safe area for combustion.
3. The unit is ruggedly built and coated with anti-corrosion epoxy so as to ensure long service life when processing hazardous and toxic gases.

More details of mud gas separator

At AIPU Solids control, the mud gas separator popular type is APMGS1000, APMGS1200. However, some time users will request special design for special condition. For example, there are APMGS600, APMGS800, APMGS1400. The difference is vessel diameter and the handling capacity. Different size degasser holding different size discharge line.

We provide customization service on many equipment. What is the customizable option on the liquid gas separator. Firstly, the material can be common carbon steel for some little or none H2S content places or drilling sites, if necessary, we suggest the 16Mn steel sheet to resist the H2S gas. Furthermore, the vessel body internal diameter can be customized. We have ever made the APMGS500 degasser holding 500mm diameter. Then, the support legs can be fixed or elevated type. And the vessel can be folded down lay on the special support leg for better protection during transportation.

For the colors, almost of poor boy degasser are painted with red color. So we don't suggest other surface coat oil. It means warning and danger.

Do you have any demand or question on mud gas separator and flare ignitor? Below specification sheet for your reference. Further question just feel free to contact AIPU

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
