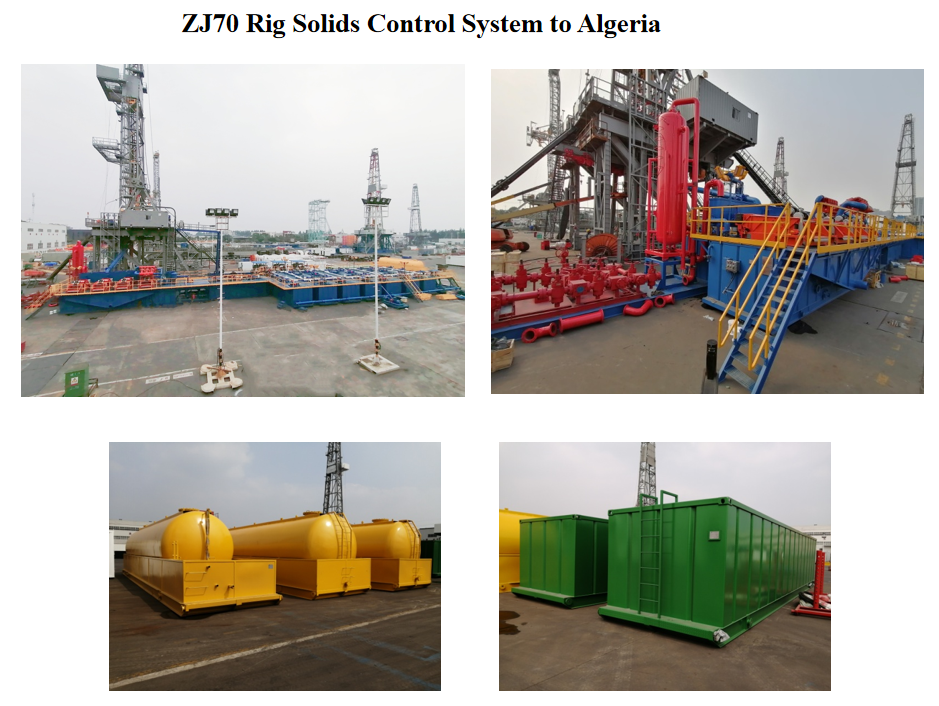

ZJ70 Drilling Rig Mud Recycling Solids Control System On Overseas Site

Drilling mud reccyling solids control system usually contain shale shaker, Vacuum Degasser, Mud Desander, desilter, Mud Cleaner, Decanter Centrifuge, pump, Drilling Mud Agitator, Mud Gun, Mud Mixer , poor boy degasser, Mud Tank, etc.. Drilling mud cleaning(solids control) systems will suit rig max drilling depth from 2000m to 9000m, as well as the offshore rig or jack-up platform drilling. We promise clients optimal solution with a cost-efficient budget.

Drilling mud recycling system is widely used in oil and gas drilling, HDD, CBM/CGS, Piling desanding, TBM slurry separation, and so on. These industry request similar solids separation or remvoal function. Please find below more information

Specification of Aipu drilling mud solids control system

Aipu drilling mud solids removal system Features

1.Drilling rig Solids Control System manufactured by Aipu have a good performance of cold-resistent, high temperature resistance, anti-explosion, anti-leakage, anti-corrosion, raining proof, adapt to wicked condition of well drilling.
2.There are intermediate pressure mud pipelines and rinsing pipelines on the top of the tanks.
3.Behind the tank, there is a pressure bar type clear sand door. It is appropriate and neat to open.
4.To use durable links between the tanks, it is convenient to set up and dismantle, has a good scalability.
5.Accurate positioning between tanks, and can connect rapidly.
6.The drilling mud solids control level is high, the effect is good, and the measurement of mud is accurate.
7.The tanks are composed of corrugated boards of the V type. Holistic rigidity is good and the appearance is pleasing.
8.The surface is interpreted with sandblasting. The in-tank is painted with intense anti-corrosion bituminous paint, and outside of the tank is painted by the oil-proof and acid and alkali corrosion resistant paint.
9.Comply with the requirements of remote and installation of the drilling crew frequently.
10.Drilling Mud Solids Control System can be prepared according to the customers’ requirements

Drilling solids control system application and effect

Drilling solids control system is designed for mud recycling of trenchless. Such as tunneling shield, HDD, and pilings. It can help reduce costs and improve construction efficiency significantly.

The whole system consists of a mud recovery treatment unit and a mud preparation unit.

Before construction, using mud mixing device to blend freshwater with mud material, achieving the purpose of mud preparation;

Using a mud pump to supply the prepared slurry to the wellhead

Return of waste mud from the wellhead is pumped to the shale shaker in the mud treatment unit, and the waste mud is removed through the mud shale shaker to remove a large amount of the waste solid particles. The treated slurry liquid will continue to be supplied to mud cleaner through the sand pump, after treatment the liquid can meet user requirements. Because after this system treated, solid particles content in the slurry liquid is 75 microns.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
