Drilling Mud Equipment Mud Cleaner Used Desilter Cones 4 Inch

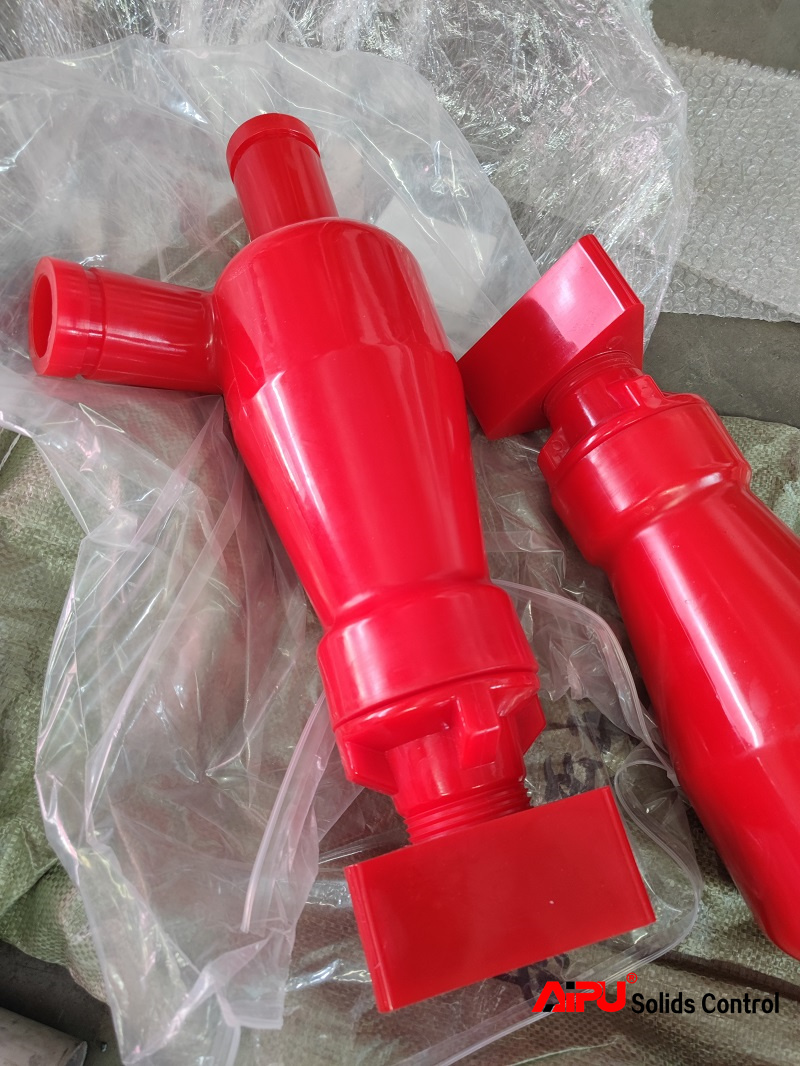

Desilter cones 4 inch is a kind of high-efficiency separation equipment that's the core part of drilling mud cleaner. The cone uses centrifugal force field to separate two-phase fluid. Cyclone 4" material is high quality polyurethane which can resist temperature around 80 degree.

Hydrocyclone separators are widely used in drilling rigs, no matter onshore or offshore platforms. removing cuttings from drilling mud those hard abrasive particles too small to be rejected by a shale shaker. The treating capacity of cone 4 inch is about 12 to 15 cubic meters per hour.

Hydrocyclone structure. the upper part of the cone is conical; a feeding pipe tangent to the cylinder wall is installed on the cylindrical cylinder; a central overflow pipe connected with the cylindrical part is installed on the upper part of the cone; the upper end of the overflow pipe is connected with the external pipe through the buffer chamber or directly to discharge the overflow, and a grit nozzle is installed at the bottom of the cone to discharge the coarse grit.

Desilter cones 4 inch technical specification

Cyclone 4" spare parts

Spare parts include the cones body, cones tip, cones apex, and cones nut. more important is these spares are interchangeable with the original equipment.

Hydrocyclone 4" features

1. No moving parts, simple structure

2. The production capacity per unit volume is large and the area is small

3. High classification efficiency up to 80% - 90% and fine particle size

4. Low cost and low material consumption

5. Spare parts in stock, they can be delivered immediately against request

Why select AIPU?

AIPU is professional manufacturer on complete line solids control equipment. All wearing parts are high quality and universality assured. For the cones, all of them are made of high quality polyurethane. Fit with the Victaulic coupling.

Furthermore, AIPU is able to provide the interchangeable mud cleaner spare parts for other makes cleaner. The shaker screen produced by AIPU is API RP13C compliant. Our products and spare parts are highly appreciated by many clients

AIPU solids control always hold popular spare parts in stock for instant delivery. Cater for clients urgency, we promise 48 hours delivery to avoid any operation delay. We consider clients’ urgency so we get the preference so long time

For more information, please don't hesitate to contact AIPU solids control. You will get an optimal solution on mud conditioner or any other demand.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.
