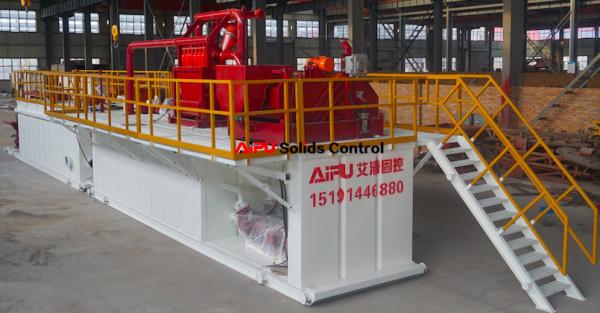

HDD Mud Recycling System For Drilling Mud Slurry Water Sand Separation

HDD mud recycling system is cosisting mud tank, mud equipment similar as oil drilling mud system. Usually, HDD mud tank will be smaller for some civil construction and load transportation. However, the main function and the structure is similar as oil and gas mud tank. Oil and gas well mud system tank is usually rectangular type. There are different size and different function tank. Such as reserve mud tank, active mud tank, mixing mud tank, trap tank, trip tank, and so on

Specification of Aipu drilling solids control system

Aipu drilling mud solids control system features

1. Solids Control System manufactured by Aipu have a good performance of cold-resistent, high temperature resistance, anti-explosion, anti-leakage, anti-corrosion, raining proof, adapt to wicked condition of well drilling.2.There are intermediate pressure mud pipelines and rinsing pipelines on the top of the tanks.3.Behind the tank, there is a pressure bar type clear sand door. It is appropriate and neat to open.4.To use durable links between the tanks, it is convenient to set up and dismantle, has a good scalability.5.Accurate positioning between tanks, and can connect rapidly.6.The drilling mud solids control level is high, the effect is good, and the measurement of mud is accurate.7.The tanks are composed of corrugated boards of the V type. Holistic rigidity is good and the appearance is pleasing.8.The surface is interpreted with sandblasting. The in-tank is painted with intense anti-corrosion bituminous paint, and outside of the tank is painted by the oil-proof and acid and alkali corrosion resistant paint.9.Comply with the requirements of remote and installation of the drilling crew frequently.10.Drilling Mud Solids Control System can be prepared according to the customers’ requirements

Different mud tanks will be designed with different compartment and equipment position.

Main structure: Usually, the tanks including main body, compartment, walk way, stairs, gurad rail, drain gate, man hole, fittings,etc.The pipelines for cable, etc.

Installation: Find out even ground for convenient handle and set up. Minimize the environment effect on tank performance. Put tanks in order according to practical demand based on our layout instruction. Please pay more attention on different tanks function and order as well as the seal and connection between tanks. Furthermore, Aipu will dispatch certain people to do commissioning and training

Legal operation: All tanks will be welded with lifting holes. The certain holes designed with sufficient reliability and balance. During practical operation they are safe please pay attention on lifting holes with mark. Do all the process according to warnings prevent any danger or trouble. Considering operators safety please all workers put on the safety cap make sure no fallings from tank.

Maintenance: The tanks made by Aipu adopted high quality national standard steel. Essentially assure the quality. Professional maintenance will lead tanks long life and good performance.We will do the sand blasting before painting very carefully. The paintings layers including 2-primary, 2-medium, 1-finish. Anyhow, please clean the tanks completely when stop operating it otherwise the drilling fluid will fill up and too hard to clean out. If we don't clean tanks fully the internal content may abrase tank wall since main mud are chemicals. It's very necessary to clean tanks deeply don't keep anything blocked at drain gates or valves.

Warning: Mud tanks play important role during solids control system. If any leakage please inspect all pipe fittings, connections and drain gate at once. Find out the reason as early as possible and do related repairing. If we can't confirm the reason please contact Aipu freely we'll give you solutions at soonest.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
