CBM Mud process system procedure

1. Drilling mud from well hole will flow into shale shaker directly or through a set of submersible slurry pump into shale shaker. The shaker is a first phase mud recycling equipment for 200 to 400 micron drilling cuttings by shaker screen. The fluids enter into shale shaker will drop into sand trap tank and dry solids will discharge through shaker screen.

2.


3. A set of centrifugal pump sit on tank skid will pick up drilling mud from sand trap and transfer mud into desander inlet. The treated mud after desander will over flow into desander compartment and solids particles discharge through desander nozzle.

4.


5. A second set of centrifugal pump will pick up mud from desander tank compartment and transfer mud into desilter cone. The treated mud after desilter will over flow into desilter compartment and solids particles discharge through desilter nozzle.

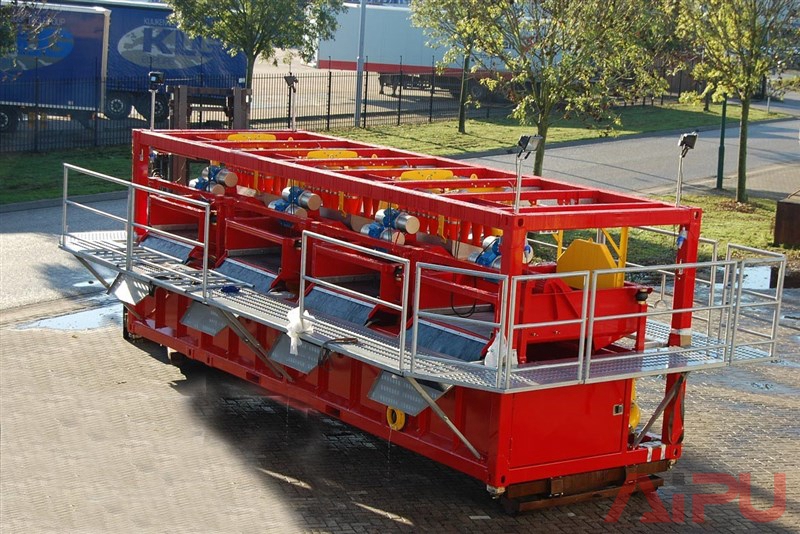

CBM mud system option
