APFI Flare Ignitor Device Use And Detail During Oil Well Drilling

The flare ignitor is used to process tail gas and gas from poor boy degasser. Usually, flare ignition is operated with a mud gas separator (poor boy degasser). They are used together to process the toxic gas. The flare ignitor is security equipment. We also treat it as environmental protection equipment. It burns harmful gas to eliminate the harm to the environment.

Flare ignitor device working

The gas is carried by pipeline to the safe burner inlet.
Connect and turn on flare igniter current conversion and a voltage amplifier circuit
Open the gas tank and operate the electronic igniter and ignite the fire tube. (the first stage ignition)
Open the gas vent gate cutting, the burning fire tube will ignite the gas. (the second stage ignition)
Turn off the gas tank and extinguish the fire tube, combustible gas-burning completely

Flare ignitor device operation tips

We must prevent any damage to ignition wire during transportation, hoisting, etc.
When installing a burner, we should be far away from the fire.
The bottom of the burner must be fixed firmly if required by the guy rope
Flare ignition devices should be placed in a good environment to protect the electronic components and ensure good performance.
A flare ignition device is usually combined with a mud gas separator in a drilling mud system.

Features

• High-quality standard steel material
• Compact design and lightweight
• Connected with H2S poor boy degasser by flare line
• Burn H2S and other poisonous gas
• High ignition frequency

Benefits

• Strong and durable
• Save space, easy to handle and transfer
• No other additional space for harmful gas
• Protect drilling site and keep work safe
• Burn H2S efficiently and completely

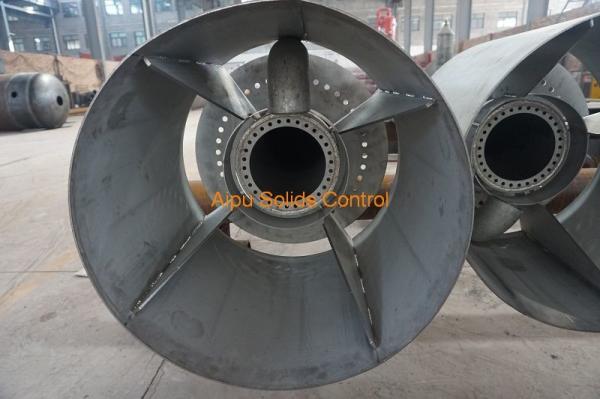

More details of flare ignitor device

The flare ignitor device is the necessary equipment in the oil drilling mud recycling system. Aipu produces flare igniter suites for customers’ various requests. If you are interested in it or other solids control equipment please feel free to call or email us.

Why do we need a flare ignitor? Because the gas flowed out is flammable and poisonous the flare ignition set behind degasser and connected by vent line. The line is requested at least 60m. This will provide a safe job site. The entrained gas including H2S, CO, methane, get them removed and burned out is the safely assured way.

We provide customization services on many types of equipment. What is the customizable option on the ignitor? Firstly, the material can be common carbon steel for some little or no H2S content places or drilling sites, if necessary, we suggest the 16Mn steel sheet to resist the H2S gas. Furthermore, as we mentioned, the installation way can be horizontal or vertical and the power supply can be solar energy or electricity. And the fuel station can be canned natural gas or diesel oil. Besides those, the control panel can be local or remote control. And the torch height is customizable, too. Common height is 3m. But some clients prefer higher or lower ones.

For the colors, considering the use almost of ignition devices are painted with red color. So we don't suggest other surface coat oil. Red means warning and danger.

Please feel free to contact AIPU solids control. Below specification sheet for your reference. The further question just let us know
