APMS series Mud Recycling System For HDD Projects Can Customized By Actual Demand

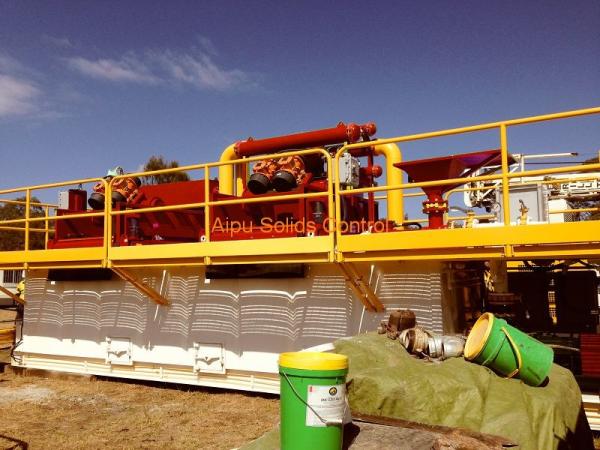

HDD mud recycling system is designed for Horizontal Directional Drilling ( HDD ) rig.

Depending on drilling mud requirement, an HDD mud recycling system can including shale shaker, desander cyclone, desilter cyclone, decanter centrifuge, mud tank, mud agitator, mud gun, transfer pump, etc. The shaker screen mesh size will depend on a shaker performance for mudflow and drilling mud separation at different mud requirements.

Mud Reclaiming / Recycling System Application and Effect

Mud reclaiming recycling mixing system is designed for mud recycling of trenchless. Such as tunneling shield, HDD, and pilings. It can help reduce costs and improve construction efficiency significantly.

HDD Mud Recycling System Working Procedure

1. There is a drill pit at each side of the drilling hole, a set of the vertical slurry pumps will set on top of mud pit for feeding shale shaker. The shale shaker screen will separate drilling cuttings and discharge out, Fluids part will drop into the sand trap through a screen hole.
2. 1 or 2 or 3 sets of desander cyclone set after shale shaker, one set of centrifugal pump will feed desander cyclone for second phase separation, solids out of desander will be discharged to shaker screen or cutting box directly and fluids overflow from desander will flow into desander compartment.
3. A quantity of desilter cyclones will sit after desander for fine solids separation, solids out of desilter will discharge to shaker screen or cuttings box, fluids over from desilter will drop into desilter compartment.
4. A mixing pump sits on tank skid for drilling mud transfer and feed mud into mud hopper for new mud remix by new chemicals. The mixing hopper can sit on top of the tank or tank skid as per the client’s demand.

Features of APMC Reclaimer/Recycler

• Circulating mud for better economic efficiency.
• Reduce environmental impact.
• Effectively mud process.
• Economical configuration.
• Easy operation and maintenance.
• Stable and reliable operation.
• Flexible proposal.

Specification

APMC Mud reclaimer/recycler Details

More information about Aipu mud recycling system

Aipu Solids Control supply mud recycling system for CBM & HDD & water well drilling and other drilling that need drilling mud. Compact design is the key feature of mud solution for 200GPM, 350GPM, 500GPM, 800GPM, 1000GPM, 1500GPM, 2000GPM mud flow as well as desander mud plant (50 100 200 M³ H) for piling and TBM.

Aipu’s separation technology offers perfect solids removal performance. Using these equipment and related screen technology, customers continuously recycle and re-use drilling fluid, while also controlling drilled solids and impact on the environment.

Come to Aipu freely to get optimal solution

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
