Mud Cleaner System Of MG Pro Series For Drilling Mud, HDD, mining and water-well

Hydrocyclone cleaner system high-efficiency for the entire circulating volume

Hunter MG Pro mud cleaner systems use a two-stage separation process for enhanced drilling fluid recovery. This design enables our mud cleaners to handle the entire circulating volume and remove any dry solids while retaining premium base fluid, which is vital to drilling success.

Effective for weighted and unweighted fluids

Hunter MG Pro mud cleaner systems are equally effective for both weighted and unweighted drilling fluids and effectively lower both drilling fluid expenses and disposal costs.

Hunter MG Pro mud cleaner system features:

• standard design with various treating capacity, 500gpm, 1000gpm, 1500gpm
• the large shaker screen area to dry the solids and recycle more fluids
• compact footprint, container shipping suitable
• Easy maintenance, stainless steel valve on each hydro-cyclone can make the replacement of cone easier, you do not need to stop the whole machine.

How MG Pro Mud cleaner system Works

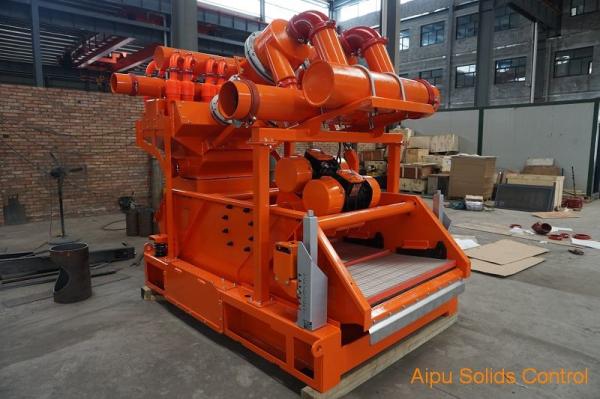

Our two-stage process is achieved by a combination of hydro-cyclones mounted over a shale shaker to operate as a single unit. The hydro-cyclones make the primary separation with underflow directed onto the shaker vibrating screen.

Desander high-volume desanding cleaner

Removes sands and abrasive cuttings from 95% of all par­ticles up to 74 micron to more than 50% of par­ticles up to 40 micron.

Desilter high-volume desilting cleaner

Features exclusive polyurethane cones with a unique 20° taper angle and a twin-cone design with 50% greater capacity than other 4-in cones.

Mud Cleaner System Specifications:

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
