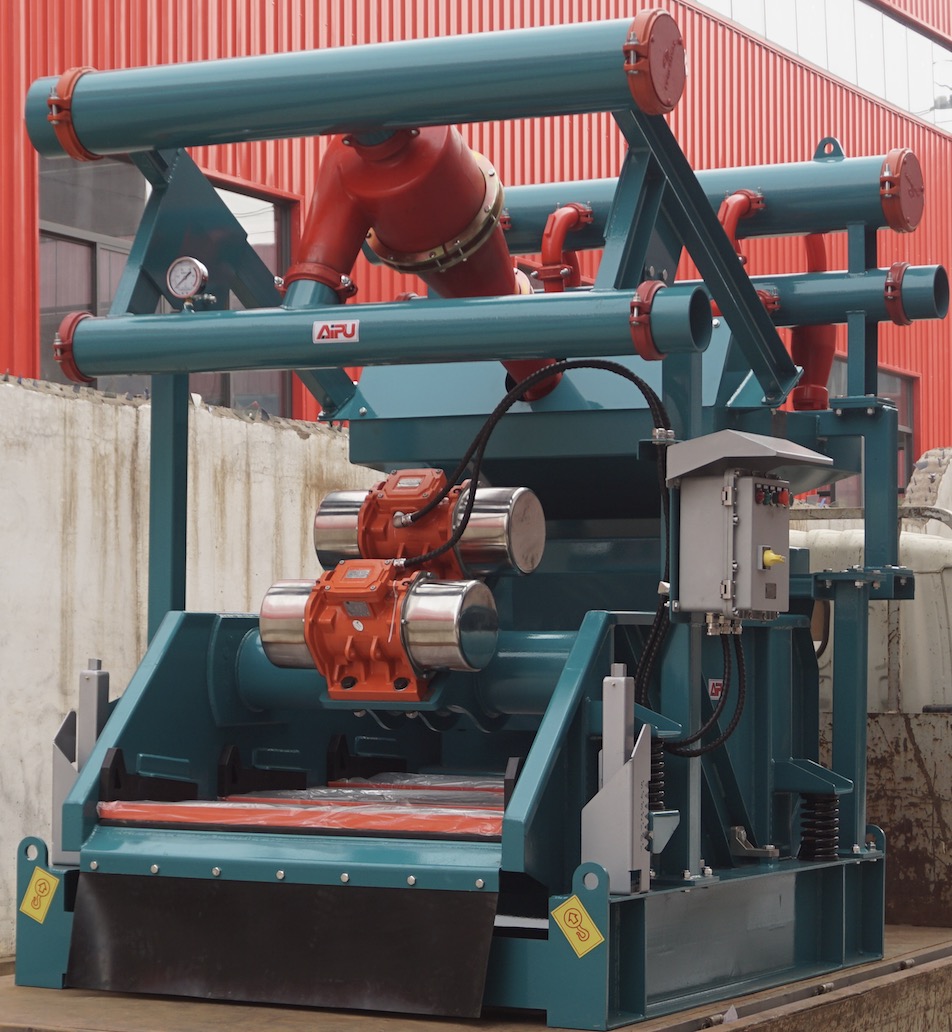

High quality oil drilling solids control Hunter series mud cleaners

Oil drilling mud solids control mud cleaner is a hot sale product at AIPU Solids Control. There are many different configuration. Such as cones quantity, bottom shaker, electrical system, and so on

Mud cleaner is a combination of shaker, desander cone and desilter cone. We call it three in one, too. For oil drilling mud process, desander cone is sized 8-12''. The desilter cone is 4'' or 5''. Different size cones hold different treating capacity. When we confirm the configuration or design on mud cleaner, we should consider the general flow rate of all cones. For example, 4" cone capacity is about 20m³/h and we request 240m³/h flow rate we need to configure 12 cones at least. To consider some heavy mud and large solids content we suggest 125% of rated capacity.

Cones on Hunter mud cleaner are all high quality polyurethane. Such cones are durable and anti-corrosive, oil-resistant, high temperature-resistant. They are very suitable for drilling fluids process. For some clients, they prefer flexible capacity adjustment during operation so we'll install ball valves on the cones inlet line.

Drilling mud is transferred to cones by centrifugal pump from the shaker tank. Desander cone and desilter cone are fed by different pumps. This will provdie better result. Under pump pressure the fluids will run into cones and flow with centrifugal force. Then the heavy particlas will deposit down and pushed out of cone drop in Apex.

After the mud cleaner processing, the solids larger than 15 microns will be separated out of drilling fluids. The drilling mud with solids spray out of cones drop down to bottom screen panel. Under vibration and filtration, the solids will be more dry and save much fluids for well drilling.The cleaned mud is transferred to centrifuge.

Some clients don't know the difference between desander and desilter. Actually, it's very easy to identify them. Bigger cone separate larger particles, smaller one separate the finer particles. And fluids will be separated by desilter after processed by desander.

Besides mud cleaner, the separated desander and desilter is another option for user. Please refer to information on desander and desilter for more reference. The bottom shaker under mud cleaner cone is used to dry fluids out of cone. So, the mesh size is rather high and the capacity is enough for discharge from cone but not same as previous shaker

Plese check below technical specification for your reference.

For more information, please don't hesitate to contact AIPU solids control. You will get an optimal solution, you will get professional proposal in time.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.
