High Efficiency BEM Shale Shaker For Drilling Mud Solids Control Get the Trust From Many Old Customers

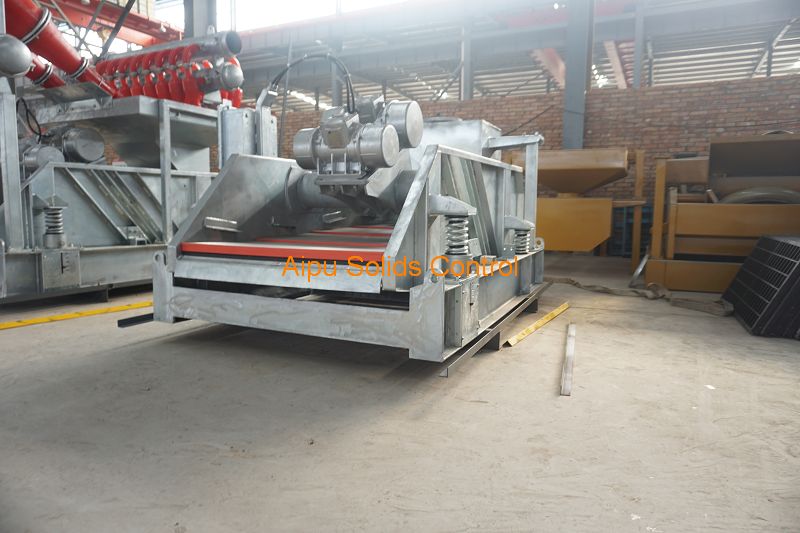

Hunter - MGD Balanced Elliptical Shale Shaker is short name BEM Shale Shaker. BEM shaker's cuttings discharge more conveniently.We are an exporter of the BEM shale shaker. Hunter - MGD shale shaker is the third- generation balanced elliptical motion shale shaker from Aipu Solids Control.

Please find below information of Hunter-D3 shaker specification

Besides solids control, the shale shaker can be used to process the oil sludge or waste management. The design on-screen or deck may vary, but the main structure will be the same. Some construction industry, such as HDD, piling, and tunneling will request shaker and other equipment to process fluids. Hunter-D3 is an ideal equipment to help the user get great solid-liquid separation result

Hunter-MGD solids control shaker is easy to operate and maintain. The screen panels are convenient to install and replace. We just need to knock out the wedge block and pull the panels out of the deck, then put on the new panels to be used and put on the wedges there, knock them tight and ensure no loose. Thus screen will no move to deck or shaker basket user will get good performance.

For the shaker motors, we use famous brand Oli or Martin. Some clients request a higher configuration level. Then the motors will be Ital-Vibras imported from Italy. High-quality motors will help much on stable performance and good result.

The deck angle can be adjusted easily by just screw the nut on the jackscrew. And angle should be adjusted according to actual working conditions. For example, when we need a high flow rate we need to make a deck with a small minus angle or in parallel to the ground. If we need better filtration or more dry solids, please make a deck with an uphill angle. The rotation can be clockwise or anti-clockwise

Meanwhile, for how to choose a shale shaker please find below mentioned

Mud flow: The figure listed on shaker specification is based on API 40 mesh shaker screens. Different mesh of shaker screen and muddy conditions will make shaker working in different mud flow and work performance. Don’t choose shaker only as it’s marked mark mud flow, you need to choose shaker based on muddy conditions and screen mesh.

G force: G force will affect shaker performance, suitable G force will help shaker get better performance. Don’t believe the higher G force, the better shaker is. Too high G force may break shaker deck with short shaker working life.

Shaker screen area: Drilling cuttings will be separated by a shaker screen. The screen area will affect shaker performance and mud flow. A larger shaker screen area will help shaker for higher mud flow or better separation performance.

Shaker screen performance: Mesh size correctness, effective screen area and screen quality is very important. AIPU build shaker screen as per API RP 13C regulation and tested AIPU screen with compliance test report.

Shaker deck strength: Shaker deck will be vibrating continuously. Deck strength is very important to guarantee shaker is better operational condition and longer working life. AIPU shaker deck chooses material Q345 and heat treatment for better strength.

Electrical standard: Different area may require different standard like IECEX, ATEX, UL, DGMS, etc. Before order any equipment, please confirm electrical standard.

Please feel free to contact AIPU Solids control. Get a free offer now!

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
