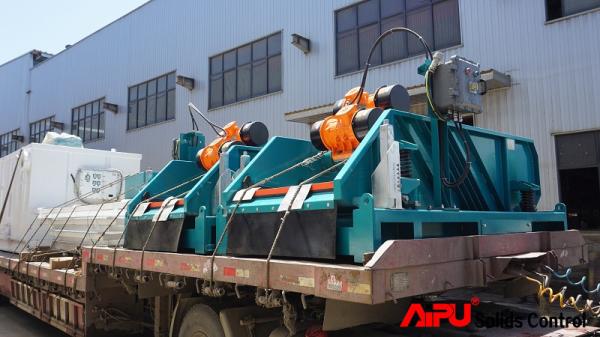

Balanced Elliptical Motion Shale Shakers for Onshore Drilling

Balanced elliptical motion shale shakers are especially effective while drilling top-hole sections where heavy, high-volume solids are present. On a balanced elliptical shale shaker, the difference in power between the two vibrating motors results in an unbalanced force. With this setup, elliptical motion shakers can effectively remove solids and eliminate larger particles in drilling fluids. The relatively moderate vibration strength of balanced elliptical shale shakers can reduce screen consumption.

There are linear motion type shale shakers for optional.

Shale Shaker is the first phase solids control equipment in the drilling fluids recycling system, which plays an important role in the waste drilling mud treatment. AIPU shale shakers are manufactured according to API standard.

Besides solids control, the shale shaker can be used to process the oil sludge or waste management. The design on-screen or deck may vary, but the main structure will be the same. Some construction industry, such as HDD, piling, and tunneling will request shaker and other equipment to process fluids. Hunter-HiG is an ideal equipment to help the user get great solid-liquid separation result

AIPU shale shaker is easy to operate and maintain. The screen panels are convenient to install and replace. We just need to knock out the wedge block and pull the panels out of the deck, then put on the new panels to be used and put on the wedges there, knock them tight and ensure no loose. Thus screen will no move to deck or shaker basket user will get good performance.

Shale shaker specification

Features of shale shaker

1. Design: Adopt ANSYS limited element analysis to optimize the structure.
2. Vibration frequency: Adjustable
3. Vibration motor: Italy OLI /American Martin, or according to customer requirement.
4. Material: Q235B from BAOSTEEL for the body, and compound rubber spring used to reduce vibration.
5. Shock absorption: Select the tensile strength of composite rubber material, smooth operation & low noise.
6. Electrical control system: Explosion-proof electrical system
7. Electrical components: ABB, Siemens, Schneider.
8. Treatment: With the process as pickling, galvanizing-assist, galvanizing, inactivation, fine-polishing. Anti-rust performance is much
9. Better than the painting process, and protects live-span and improves the corrosion periods.
10. Shaker screen: Shale shaker screens can be replaced in minutes. The life cycle is much longer for every piece of screen.
11. Minimum and Easy Maintenance: With 2 footboards on the two sides of the drying shaker for easy maintenance.

For the shaker motors, we use famous brand Oli or Martin. Some clients request a higher configuration level. Then the motors will be Ital-Vibras imported from Italy. High-quality motors will help much on stable performance and good result.

The deck angle can be adjusted easily by just screw the nut on the jackscrew. And angle should be adjusted according to actual working conditions. For example, when we need a high flow rate we need to make a deck with a small minus angle or in parallel to the ground. If we need better filtration or more dry solids, please make a deck with an uphill angle. The rotation can be clockwise or anti-clockwise

Moreover, clients will use the AIPU Hunter-MGD shaker to process the slurry or some high water content mixture of sand and water, etc. The Hunter-HiG shaker will help much to save the economic benefits and the time benefits for clients.

Based on different requirements of the job site the drying shaker can be made as dual tandem and the triple tandem, too. The G force of the motor can be adjusted according to practical demand. It's easy to achieve. The higher vibration strength will lead to less flow rate but a better drying effect and better performance.

Please feel free to contact AIPU Solids control. Get a free offer now!

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
