Single Deck Drilling Mud Shaker Wedge Type With Compact Design 3 Panel Screens

Shale shaker introduction

Shale shakers are components of solids control equipment used in many industries, such as oil and gas drilling, coal bed methane(CBM), horizontal directional drilling (HDD), diamond drilling, water drilling, etc. In addition to producing various types of shale shaker with large capacity, we, Aipu also produce Hunter mini shale shakers with wedge-type screens.

Technical parameters of Hunter-mini shale shaker

Hunter mini shale shaker with unit treating capacity 300GPM, 2-panel coarse stainless steel shaker screens with total screen area 1.35㎡, G-force 6.5G adjustable, the total power of this shaker is 2 sets of 0.75 KW motor, and total weight 950 kg. Based on these parameters. It's a mini shale shaker.

Hunter Mini shale shaker is designed for HDD or diamond drilling to suit small volume application. 2 panels of a shaker screen to reach mudflow capacity to 60m³at. Hunter mini shaker also is a good option for Desander, Desilter, or Mud Cleaner bottom deck shaker for cost-effective.

Hunter-mini can meet the requirement for the clients who do not need so large a treating capacity but want to find an economical way to separate big solids from the drilling fluids.

This linear motion Hunter-mini shale shaker can be widely used in HDD, water well drilling, shadow drilling, and other drillings which need small treating capacity. After the new mini shaker is developed, there are many customers who showed their interest. Before they have to use a bigger shaker 3-panel Hunter-MG3 or even 4-panel Hunter-D3. These shakers can treat the drilling mud better because of their huge treating capacity, but it is a waste of money.

Hunter series shale shaker features

Heat treatment of shaker deck for steady working, Stainless Material for shaker deck bottom.

Mechanical deck angle adjustment for steady and reliable performance.

Wedge type screen and hook strip screen both available to suit client requirements.

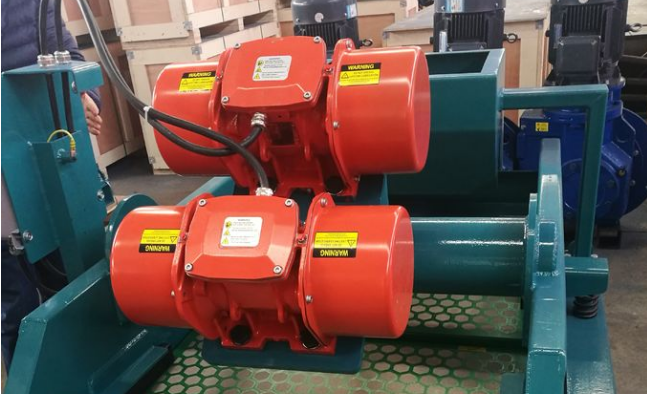

Italy brand motor, standard brand is OLI, Martin or Ital-Vibras motor as option.

Max G force reaches 7.5G, G force adjustable depending on drilling mud conditions.

Heavy anticorrosive painting on shaker service, 3 layer painting.

Standard options: IECEX, ATEX, UL, DGMS, CE, Gost.

Top brand of the electrical control panel, Siemens/Schneider brand main components.

Shaker screens have got to API RP 13C compliance test.

The reason for choosing Aipu solids control?

We Aipu focus on the solids control industry for over 20 years and we have a professional technical team. Besides the Hunter-MG shale shakers, there are Hunter-D shakers. The difference is the screen installation way and screen area. Why clients select AIPU continuously?

High-quality with good performance. True cost-effectiveness. Many of our clients are introduced by our regular clients. And among the orders, almost all of them are repeat orders. Clients’ repeat orders tell many things and all of our users are satisfied with our shakers quality and our service

No matter how large the capacity you want to handle. No matter single, double tandem, or triple tandem, it also can be a single layer or double layer, you can always contact us, we will provide you with the best solution

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
