HDD mud recycling shaker Hunter Series

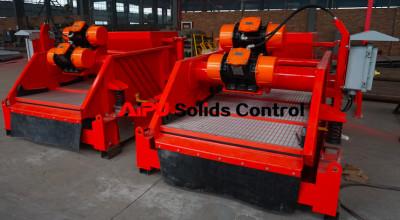

Introduction of Aipu Hunter series shale shaker for HDD mud recycling

Shale shaker is one of the core solids separation equipment for drilling mud recycling for HDD, trenchless, piling, CBM, etc. The shaker will sit on the tank to allow tank fluids to drop by gravity and the tank for storage of treated mud. The shale shaker model section for trenchless should be mudflow capacity, shaker screen specification, buffer box on shaker top, and Nonexplosion proof electricals. A trenchless mud system requires good performance, limited footprint, and cost-effectiveness. Any of the 3 points is very important to allow a trenchless user to select the right equipment

Technical parameters of Hunter D3 for HDD mud recycling

Main features of Aipu Hunter shaker

Aipu shakers will be treated under heat treatment. The shakers have been proved as effective at the drilling sites. The shaker itself weight is proper and reasonable. High flow rate and better performance. Wide range angel adjustment provide better separation result.

The shaker screens are interchangeable with a famous brand shaker, too. Easy to replace the screen with one person. Between the screen panel and shaker basket, there is a dual seal to lead to a better sealing result.

Please contact AIPU solids control for more details. Such as shaker price, shaker parts, the maintenance cost, and so on.

Benefits of Aipu Hunter series shale shaker

Italy brand motor, standard brand is OLI, Martin or Ital-Vibras motor as option.

Max G force reaches 7.5G, G force adjustable depending on drilling mud conditions.

Heat treatment of shaker deck for steady working, Stainless Material for shaker deck bottom.

Heavy anticorrosive painting on shaker service, 3 layer painting.

Wedge type screen and hook strip screen both available to suit client requirements.

Mechanical deck angle adjustment for steady and reliable performance.

Standard options: IECEX, ATEX, UL, DGMS, CE, Gost.

Top brand of the electrical control panel, Siemens/Schneider brand main components.

Composite material screen available for longer service life.

Shaker screens have got to API RP 13C compliance test. The only one supplier in China with an API RP 13C compliance test report.

Shale shaker screen for Aipu Hunter series shaker

The screen for the shaker can be a normal one made from S.S wire cloth, also can be the polyurethane panel. The polyurethane screen panels can provide better water or fluids separation effect. Polyurethane screens last longer than the stainless steel screen panel, too

Screen opening size or the aperture is flexible to select. Ranged from 1mm to o.053mm. Furthermore, the screens can be fit by pins or the hook on the shaker.

Shale shaker is the kernel device in any solids removal program. Screens as the most cost spare part of a shale shaker are very concerned by engineers. For maximum efficiency, the solids on the screen surface must travel in a predetermined pattern "spiral, elliptical, orbital or linear motion" in order to increase particle separation efficiency and reduce blockage of the screen openings. So both screen cloth and frame must be reliable to fit different solids in various drilling circumstances. Generally, the materials of screen cloth are stainless steel and polyurethane. There mainly has two materials component screen frames: steel, composite frames.

We, Aipu solids control has 18 years experience manufacturing shale shaker screen. Our Screen has been tested under API RP13C. We are the only China screen manufacturer who got an API RP13C compliance report. Trust the accurate cut point will lead to better performance and longer service life of the screen. Contact us directly for any shaker screen, customized or interchangeable with another famous brand

Shale shaker spring types and features

Most of the springs are made of high-quality special spring steel. However, some of the springs or we call it a float amount/absorber is made of rubber or combined rubber and steel. For example, ️ shakers and cleaners will be mounted with a rubber. While NOV Brandt and M-I SWACO utilize the steel spring
Even for springs made of the same material, there are different types. Such as steel springs φ76x180x6mm thickness, and φ85x150x8mm. For springs made of rubber, there are springs installed lateral or vertical and rubbers with different hardness

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.
