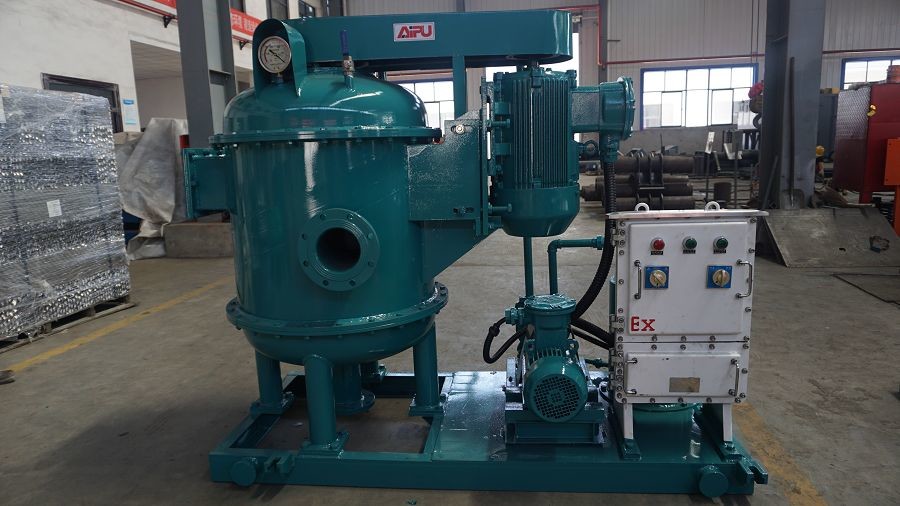

Vacuum Degasser Well Drilling Horizontal Vacuum Degassing Machine 37kW

Vacuum Degasser is adapted to get rid of various cut-in gases in the drilling fluids. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity, and reducing drilling costs. Therefore, it works as one type of mud cleaning equipment. As it is placed after the shale shaker, so we call it second stage mud cleaning equipment in the mud recycling system. At the same time vacuum, degasser can be used as a heavy-power agitator. The vacuum degasser has a self-suction function, so it doesn't need the extra transfer pump to feed the mud. After the impurities have been removed, the working efficiencies of subsequent centrifugal pumps for desander and desilter would be greatly increased.

Technical parameters of APZCQ vacuum degasser

Characteristics of APZCQ Vacuum Degasser:

• A self-priming device enables it to pump drilling fluids without the centrifugal pump.
• Gas-water separator in vacuum degasser saves water and is environment-friendly.
• The vacuum degasser has high degassing efficiency of up to 95%.
• Belt drive guarantees a long time working time without trouble.
• Water ring type of vacuum pump work is suitable for flammable and explosive gas suction.
• Scientific and reasonable design for structure achieves effective separation of gas and liquid.

Principle and application of APZCQ vacuum degasser

Vacuum degasser vacuum of the negative pressure entrained by the gas extracted from the mud. To make it work, mud is pumped through the venturi, the venturi generates a negative pressure in the container by the vacuum pump, the suction unit so that the slurry. The choice between the horizontal or vertical mounting apparatus mounting requirements of a particular area is generally based on the rig.

Vacuum degasser is a dedicated device, is a new device for processing the gas in the drilling fluid. It can quickly eliminate various gases invasive drilling. Vacuum degasser is important to restore the mud to gravity, the slurry viscosity stability, and reduce drilling costs. Similarly, while the vacuum degasser may be used as a power blender, and support all types of mud circulation purification systems.

Features and Advantages of APZCQ vacuum degasser

• Scientific reasonable design for the structure can get effective gas fluids separation and filter out impurities to guarantee vent pipe is always clear.
• Adopt belt drive, avoid the complication of the reducing gear, ensure the long working time without trouble.
• The water circle type of vacuum pump is always constant and applies to pump the flammable and explosive.
• High degassing efficiency, up to 95%.
• There is a gas-water separator in the vacuum degasser, which can avoid the gas and fluids are all removed together, and also can supply water for the vacuum pump, saving water and environment-friendly.

Vacuum Degasser Features and Benefits:

1. Can separate gases greatly from the mud; high efficiency;
2. Can autonomously suck up the fluid, so no feeding pump is needed; low maintenance cost;
3. Selected and match infrared liquid level monitoring system make equipment control automatically.)The optional infrared-ray liquid level monitoring system, realizing automation control;
4. International brand Schneider or SIEMENS electrical components.

Above technical parameters for your reference, and some configuration is customizable. For any questions or demands, just feel free to contact AIPU solids control. You will get a professional proposal very soon.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.
