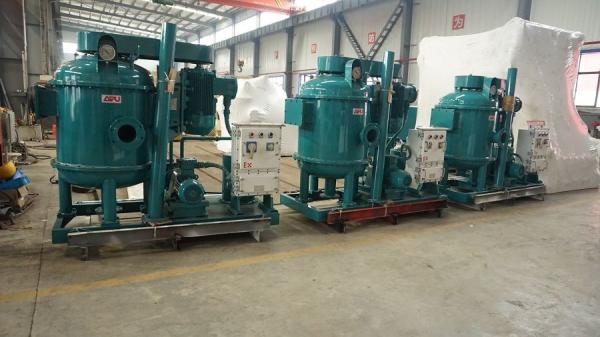

Vacuum Degasser APZACQ 240 Oilfield Degasser Unit Customizable

Vacuum Degasser is a special-purpose device and a new type one for the treatment of gas in the drilling fluids. It can get rid of various gas of invasive drilling quickly. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Also, at the same time vacuum degasser can be used as a heavy-power agitator and supported applicable to all types of mud circulation purification system.

Please check below technical specification on APZCQ Vcuum degasser for your reference.

Atmospheric degasser, on the other hand, are simple in design and operation. These units mechanically remove gas, but instead of solely relying on density differences between the gas and the mud, whereby the gas liberates itself automatically.

The APZCQ series oilfield vacuum degasser is 2nd phase purification equipment in whole fluids system for well drilling. The first phase is shale shaker to get rid of solids, the degasser is used to separate the small amount entrained gas in drilling mud. It plays important role on drilling mud property maintenance. Besides degasser, its another role is powerful agitator.

Drilling mud after processed by shale shaker, before it pumped into desander cone, the vacuum degasser will suck drilling mud from shaker tank to separate gas. APZCQ degasser is self-feeding degassing equipment. No need for extra feeding pump. Under the minus pressure condition, the drilling mud can be sucked into degasser vessel easily.

The vacuum degasser can help to get rid of H₂S, methane, and CO. When the mud is not degassed well, there will be danger during futher mud process. And the drilling fluids is not as stable as purified fluids, the property is worse than cleaned too.

Why we call degasser the 2nd purification equipment? It's set behind shale shaker but prior to desander or mud cleaner. The vacuum degasser holding different sizes and different treating capacity. The model unumber APZCQ 270 means the degasser can handle fluids mixed with gas upto 270m³/h. Users can select the proper degasser according to pratical demand

The material of vacuum degasser can be common carbon steel or the H₂S resistant steel. At some of drilling sites, there is no ignitor connected directly to gas vent port, but at some drilling sites, such as gas field or shale gas drilling the vacuum degasser is connected with ignition device via a line to make sure the gas can be burned safely.

Vacuum degassers are not operatred continuously. As the entrained gas quantity is not as large as the gas flow out of the choke manifold or the elevating pipe. We can turn it on when entrained gas raise.

For any interes or demand on drilling mud vacuum degasser, please feel free to contact AIPU. You will get professional proposal very soon.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
