APMGS Series Drilling Mud Gas Separator Serves As An Ideal Device For Application In Oil And Gas Well Drilling

Drilling Mud Separator Brief

Mud gas separator (MGS) is the ideal equipment to separate gas out of drilling mud before shale shaker to reduce gas explosion. The MGS has another name poor boy degasser too. AIPU supply 3 models of MGS with 800mm, 1000mm and 1200mm diameter tank vessel. The model selection can be done as per mud flow capacity requirement or budget requirement. Some clients requires only MGS and some require MGS and flare ignition device both depending on drilling conditions. If no flare ignition device, the gas vent line on MGS will be set on vessel top with meters of gas vent line to allow separated gas discharge out.

Mud Gas Separator Application:

Drilling Mud Gas Separator serves as an ideal device if well blowout or kick is encountered or if operators apply under-balanced mud column in drilling processes. APMGS Series Drilling Mud Gas Separator is primarily used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Field data shows it is a fairly reliable and vital safety equipment.

Mud Gas Separator Installation Features

1. MGS will set beside shale shaker tank and connected with shaker distribution tank to allow treated mud goes into shale shaker for solids separation.

2. Mud comes out of chock manifold will goes into MGS directly for gas separation.

3. The footprint of a MGS is 2 meters by 2 meters with a stand to hold tank vessel. The stand design can be changed and supply to client as per request to allow degasser fold down on to a skid.

4. A flare ignition device can be selected to sit 30 meters away of degasser to burn the waste gas out of MGS.

More details of drilling mud gas separator

At AIPU Solids control, the mud gas separator popular type is APMGS1000, APMGS1200. However, some time users will request special design for special condition. For example, there are APMGS600, APMGS800, APMGS1400. The difference is vessel diameter and the handling capacity. Different size degasser holding different size discharge line.

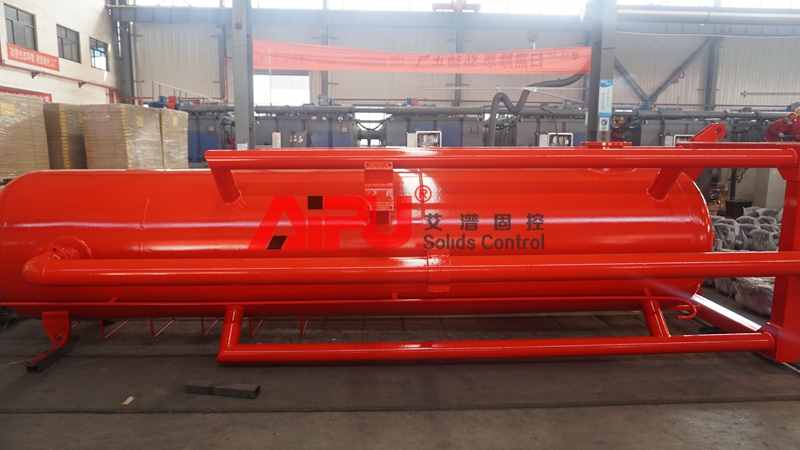

We provide customization service on many equipment. What is the customizable option on the liquid gas separator. Firstly, the material can be common carbon steel for some little or none H2S content places or drilling sites, if necessary, we suggest the 16Mn steel sheet to resist the H2S gas. Furthermore, the vessel body internal diameter can be customized. We have ever made the APMGS500 degasser holding 500mm diameter. Then, the support legs can be fixed or elevated type. And the vessel can be folded down lay on the special support leg for better protection during transportation.

For the colors, almost of poor boy degasser are painted with red color. So we don't suggest other surface coat oil. It means warning and danger.

AIPU Solids Control build mud gas separator as well as other drilling mud equipment to supply a complete drilling mud process equipment. Please visit our website freely for inquiry.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.
