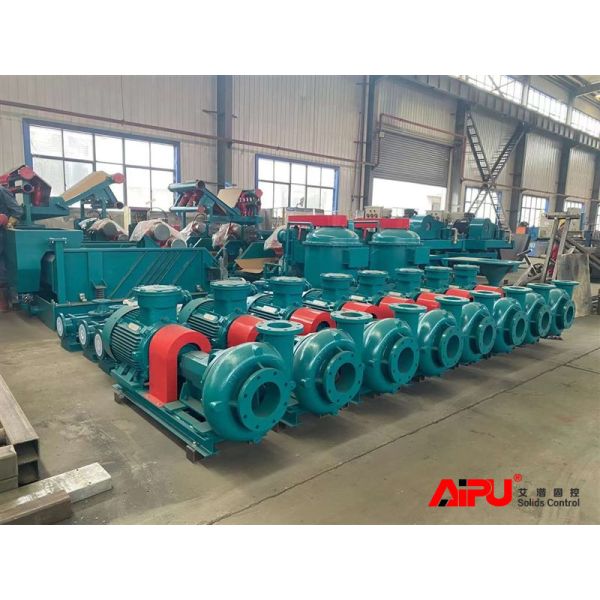

Solids control feeding centrifugal pump APSB8x6-55kw for mud cleaner

Centrifugal pump can be used as a feeding pump for mud desander, mud desilter or used as mixing pump for jet mud mixer. also it can be used as trip pump, and supercharging pump for rig mud pump.

AIPU solids control produces a complete range of drilling fluids treatment equipment with over 20 years of experience. The centrifugal pump is a popular one. Centrifugal pump is used to transfer mud or water or slurry. All AIPU model centrifugal pumps use hard ductile iron alloy casing and impeller, tungsten carbide mechanical seal with famous brand bearing. And spare parts are interchangeable with most of international Brand pumps which help customers to source spare parts easily.

For the same pump head as 8x6, different power and impeller sizes will lead to different flow rates.

Specification of centrifugal pump APSB 8*6

Centrifugal pump application

Centrifugal pump is widely used in solids control system of oil and gas drilling. Centrifugal pump is worked as the feeding pump to drilling mud cleaner, drilling mud desander, drilling mud desilter, as well as an important part of jet mud mixer. No matter for oil and gas drilling, or water drilling, CBM, or piling. The solids control system needs the centrifugal pump to be power or energy supply of fluid circulation

Centrifugal pump types in solids control

Drilling fluid solids control requests many centrifugal pumps to be fit on mud tanks. According to function, we call centrifugal pumps as sand pumps, submersible slurry pumps, shear pumps, charging pumps, etc. They are defined for their different functions, but their working principle is the same

Usually in drilling fluid solids control there are horizontal centrifugal pump and vertical centrifugal pump. The difference is motor installation direction and pump feed inlet position.

To select either of installation way we need to consider the actual operation condition and general space. Presently, except installation way, there are different types pump on the seal. Mechanical sealed pump are more popular since the stable performance and reliable quality

How centrifugal pump works

Applying classical mechanics theory, assuming viscosity of the liquid equal 0 and no energy loss for the work of energy transferring from impeller to the streamlines which means that, all separate flow will be uniforms (this approximations of physical reality to get the simpler as solid state mechanism than hydraulic mechanism

General explanation: Like most pumps, a centrifugal pumps convert rotational energy, often from a motor, to energy in a moving fluid. A portion of the energy goes into kinetic energy of the fluid. Fluid enters axially through eye of the casing, is caught up in the impeller blades, and is whirled tangentially and radially outward until it leaves through all circumferential parts of the impeller into the diffuser part of the casing. The fluid gains both velocity and pressure while passing through the impeller. The doughnut-shaped diffuser, or scroll, section of the casing decelerates the flow and further increases the pressure
In the drilling fluid solids control system centrifugal pumps are used as transfer pump. Mainly pump drilling fluid to desander hydrocyclone, desilter hydrocyclone. They also are combined together with mud hopper to be jet mud mixer or mud mixing pump. Pumps work as power transition tool.

We may face many different problems during pump operation. Please contact us for further information or support. We Aipu solids control will do come to you with optimal solutions

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.
