APSLH Mud Mixing Hopper Unit With Venturi Nozzle For Drilling Mud Process is highly recognized and applied by customers

General information of mud mixing hopper unit

Mud mixing hopper unit is also referred to Jet mud mixer or mixing hopper pump. Since it's a combination of hopper and centrifugal pump. The hopper can be the venturi hopper or the whirl hopper. This lead is about mixing pump with venturi hopper

The model number means jet mud mixer of AIPU and the outlet is 6'', while the venturi nozzle is 2''. This model mixer fit centrifugal pump APSB8X6, and pump driven by motor 75HP. The flow rate is up to 1200gpm. If no special requirements the pump and motor will be configured as the standard one. But nowadays, more and more users need the higher flow rate mixer since the deeper well drilled. Such as ZJ90 rig. So the pump and hopper can be adjusted accordingly

On AIPU mud mixing pump, the centrifugal pump is mechanical sealed and rather reliable. There is high quality butterfly valve on pump pipelines. This will help to control mud flow rate and the compounding better during operation. The pressure is 0.2~0.4Mpa

More detail information of APSLH series mud mixing hopper unit

The jet mud mixer can be widely used in drilling mud system. Including the oil and gas drilling, the HDD mud recycling, the civil construction drilling mud process. As we know, during drilling there is mud lost and to maintain the mud property we need such equipment to prepare sufficient quality fluids

Besides the APSLH150-50, there are other models jet mixing pump. The difference including pump size, motor power, and the hopper size, the pipe line and fittings

Furthermore, we also provide different configuration on hopper, pipe and pump connection.

Features of APSLH series mud mixing hopper unit

The mature design and excellent performance. Powerful agitation and mixing during whole mud system criculation. Reliable performance and durable quality costs less on operation and maintenance. Flexible on configuration of pump and hopper. Cost effective solution for various users.

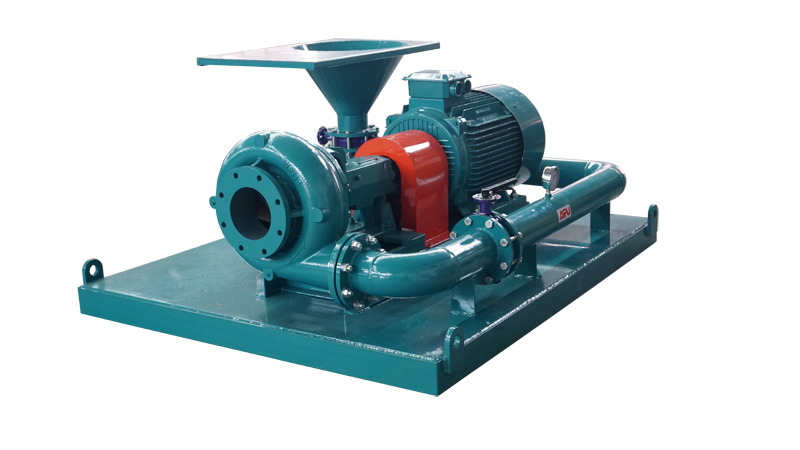

Mud Mixer Main Parts

1. Venturi mud mixing hopper installed to help chemicals easily being agitated into water or drilling mud. The mixing hopper makes the mixing application easy and continuously.

2. Mixing pump will transfer drilling mud or water to mix chemicals gradually. The pump is mechanical seal and interchargeable with Mission Magnum.

3. Electrical control panels installed beside mixing pump to control the motor with delta starter. The delta starter is will be installed for motor 30kw and above, the motor bellow 30kw can be delta starter with extra cost.

4. Pipeline arrangement between mixing pump and mixing hopper with butterfly valve. Special pipeline arrangement can be done as per request.

5. A public skid to hold all above equipment for steady working and fast moving with lifting lugs.

Specification of APSLH150-50 mud mixing hopper unit

If you have any demand of mud mixing hopper unit ? Or you are interested in any other mud equipment. Please contact AIPU Solids freely. Trust you will get the true cost effective solution at the best rate.
